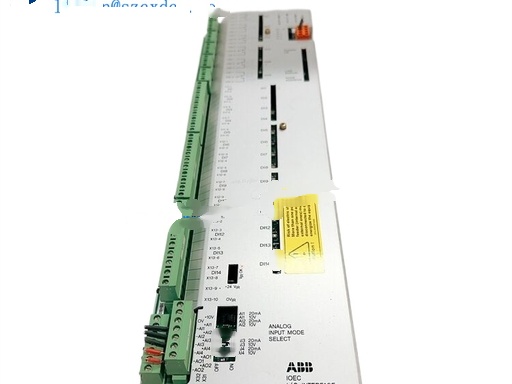

ABB 3BHE006412R0101ABB UNITROL Series Field Current Measurement & Excitation Limiter PCB Assembly
High-precision sampling of generator rotor field current and voltage from thyristor rectifier bridge, converting raw power analog signals into isolated low-level digital signals. Executes hardware-based excitation limit protection including maximum field current limiter, rotor thermal overload protection, and under-excitation reactive power boundary control. Provides galvanic isolation between high-voltage power circuits and low-voltage control logic to suppress EMI and surge transients. Real-time feedback closed-loop regulation for automatic voltage control and power factor adjustment.
Product Description
High-precision sampling of generator rotor field current and voltage from thyristor rectifier bridge, converting raw power analog signals into isolated low-level digital signals. Executes hardware-based excitation limit protection including maximum field current limiter, rotor thermal overload protection, and under-excitation reactive power boundary control. Provides galvanic isolation between high-voltage power circuits and low-voltage control logic to suppress EMI and surge transients. Real-time feedback closed-loop regulation for automatic voltage control and power factor adjustment.
Technical Specifications
| Brand | ABB |
|---|---|
| Model | 3BHE006412R0101 |
| Category | Power Generation > Excitation System > Sampling Board |
| Power Supply | 24 VDC ±20% |
| Power Consumption | ≤ 22 W |
| Isolation Rating | 3000 VAC |
| Sampling Precision | 16-bit ADC, ≤ ±0.2% FS |
| Operating Temperature | -20 °C ~ +60 °C |
| Dimensions | 342 mm × 118 mm × 16 mm |
| Compatibility | ABB UNITROL 5000 / 6000 |
| Certifications | CE, UL, IEC 61000, RoHS |
| Origin | Germany / Original |
| Condition | New Original Factory Sealed |
| Warranty | 12 Months |
| Shipping | Global Delivery via DHL/FedEx/UPS |
