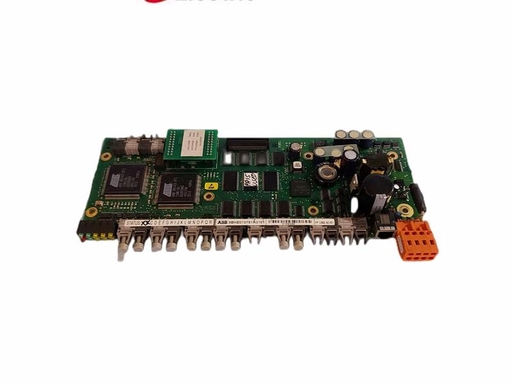

ABB 3BHE014023R0101ABB UNITROL 5000/6000 Interface & Synchronization Control PCB
Processes three-phase generator terminal voltage and busbar grid voltage signals to implement precise synchronization control before generator grid connection. Compares phase angle, voltage amplitude and frequency between generator output and power grid. Provides galvanic isolation and EMI filtering for PT secondary voltage signals. Delivers analog and digital synchronization adjustment signals to main AVR CPU board. Executes anti-parallel and out-of-step protection logic. Interfaces with external synchronizing relays and plant DCS systems.
Product Description
Processes three-phase generator terminal voltage and busbar grid voltage signals to implement precise synchronization control before generator grid connection. Compares phase angle, voltage amplitude and frequency between generator output and power grid. Provides galvanic isolation and EMI filtering for PT secondary voltage signals. Delivers analog and digital synchronization adjustment signals to main AVR CPU board. Executes anti-parallel and out-of-step protection logic. Interfaces with external synchronizing relays and plant DCS systems.
Technical Specifications
| Brand | ABB |
|---|---|
| Model | 3BHE014023R0101 |
| Category | Power Generation > Excitation System > Synchronization Board |
| Power Supply | 24 VDC ±20% |
| Power Consumption | ≤ 16 W |
| Galvanic Isolation | 2500 V AC |
| Measurement Accuracy | Voltage ≤ ±0.15% FS; Phase ≤ 0.1° |
| Operating Temperature | -20 °C ~ +60 °C |
| Compatibility | UNITROL 5000 / 6000 |
| Origin | Germany / Original |
| Condition | New Original Factory Sealed |
| Warranty | 12 Months |
| Shipping | Global Delivery via DHL/FedEx/UPS |
