ABB 3HAC5689-1ABB 3HAC5689-1 DSQC 504 Base Connecting Unit (Robot Controller Main Connectio...

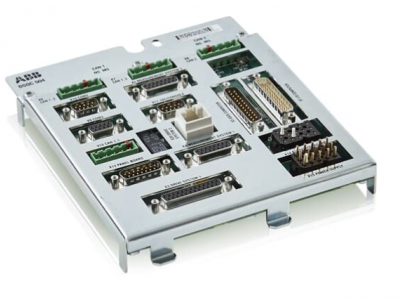

ABB 3HAC5689-1 DSQC 504 Base Connecting Unit (Robot Controller Main Connection Motherboard) Core Function This is the central backplane communication interface board for ABB M2000 robot controllers. It acts as the main signal routing hub to interconnect the robot CPU, drive units, teach pendant, safety circuits, serial communication ports, encoder feedback cables, and peripheral I/O modules. It consolidates all robot internal signal wiring, distributes 24VDC control power, and transmits motion control, safety, serial RS485 and encoder data between all controller sub-components. It is mandatory for the M2000 controller to establish robot motion and safety communication links. Core Function This is the central backplane communication interface board for ABB M2000 robot controllers. It acts a
